BMWs are known for their performance, luxury, and driving dynamics, but like any complex machine, they have their share of common problems. Here’s a breakdown of the most frequent issues across different models: 🔧
🔧 Engine & Drivetrain Issues
- ✅ Timing Chain Guide Failure – Common in N20 (4-cylinder) and N63 (V8) engines. Leads to rattling noise, check engine light, and possible engine failure.
- ✅ Valve Cover & Oil Pan Gasket Leaks – Often seen in N52, N54, N55, and N63 engines due to aging rubber gaskets.
- ✅ Oil Filter Housing Gasket Leaks – Causes oil leaks and can lead to coolant contamination.
- ✅ High Oil Consumption – Mostly in N63 V8 engines due to valve stem seal issues.
- ✅ Rod Bearing Failure – Found in S65 (E9X M3) and S85 (E60 M5) engines, leading to catastrophic engine failure.

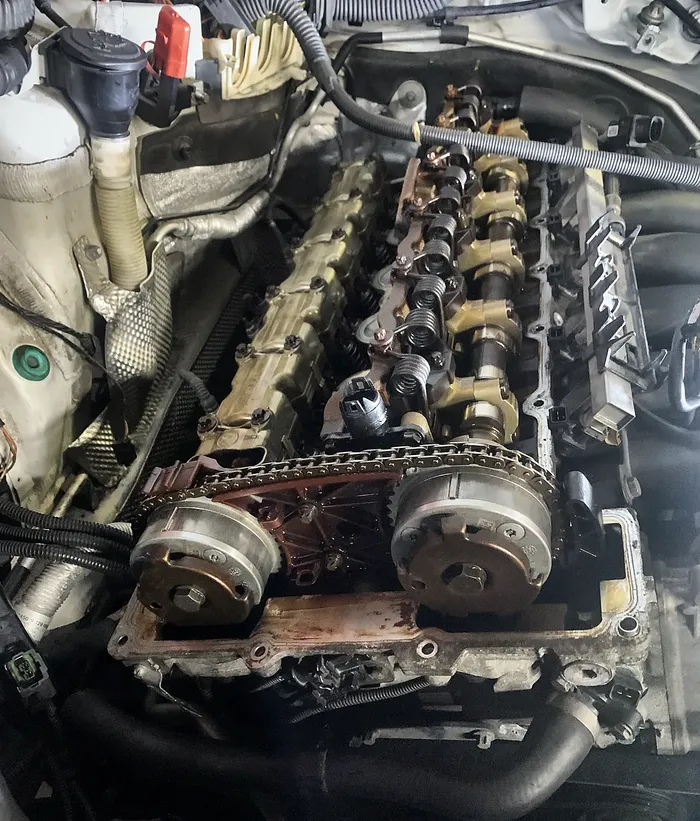

- ✅ VANOS (Variable Valve Timing) Issues – Solenoid and seals fail over time, causing rough idle, poor performance, and check engine lights.
⚡ Electronics & Electrical Issues
- ✅ Water Damage to ECU & Electronics – Caused by clogged sunroof or cowl drains, especially in E90, F10, and F30 models.
- ✅ Footwell Module (FRM) Failure – Leads to loss of interior/exterior lighting and power windows.
- ✅ Battery & IBS Sensor Failure – The Intelligent Battery Sensor (IBS) can fail, leading to no-start issues.
- ✅ Starter & Alternator Failures – Can cause intermittent no-start or electrical issues.
- ✅ Key Fob & Comfort Access Malfunctions – Antennas and door handle sensors tend to fail over time.
⚙️ Transmission Issues
- ✅ ZF 8HP Transmission Mechatronic Unit Issues – Valve body failures can cause harsh shifting.
- ✅ 6HP & 8HP Automatic Transmission Fluid Leaks – Sealing sleeves and gaskets tend to leak over time.
- ✅ Dual-Clutch Transmission (DCT) Issues – Found in M models, prone to overheating and software glitches.
- ✅ Driveshaft & Guibo Failure – Driveshaft flex disc (guibo) cracks over time, causing vibrations and drivetrain issues.
🛞 Suspension & Steering Problems
- ✅ Thrust Arm Bushings Wear – Leads to front-end clunking and vibration under braking.
- ✅ Steering Rack Failure – Common on F-series models, causing heavy steering or knocking noises.
- ✅ Adaptive Suspension (EDC) Strut Leaks – Expensive to replace and common on M models.
- ✅ Rear Subframe Tearing (E46, E36) – Structural issue requiring reinforcement.
🌡️ Cooling System Issues
- ✅ Water Pump & Thermostat Failure – Electric water pumps (N52, N54, N55) fail early, causing overheating.
- ✅ Radiator Expansion Tank Leaks – Found in many BMWs due to weak plastic design.
- ✅ Coolant Pipe Leaks (N63 & N74 Engines) – Internal coolant transfer pipes fail, leading to major leaks.
- ✅ Heater Core Leaks – Causes sweet-smelling fumes inside the cabin.
⛽ Fuel System Problems
- ✅ High-Pressure Fuel Pump (HPFP) Failure – Found in N54 and N55 engines, leading to misfires and power loss.
- ✅ Fuel Injector Leaks & Carbon Buildup – Common in direct-injection engines, requiring walnut blasting.
- ✅ Low-Pressure Fuel Pump (LPFP) Failure – Causes poor fuel delivery and stalling.
🛑 Braking & ABS System Issues
- ✅ ABS/DSC Module Failures – Leads to traction control warnings.
- ✅ Soft Brake Pedal (E92 & F30 3-Series) – Often due to weak vacuum pumps.
- ✅ Parking Brake Actuator Failure (F-Series 5 & 7-Series) – Expensive repair if it fails.
🚪 Interior & Body Issues
- ✅ Window Regulator Failure – Frequent issue causing windows to get stuck.
- ✅ iDrive System Malfunctions – Can freeze, crash, or lose Bluetooth connectivity.
- ✅ Comfort Access Door Handle Failure – Fails due to sensor wear over time.
- ✅ Sunroof Water Leaks – Clogged drains lead to interior water damage.
- ✅ Dashboard & Trim Peeling (Older Models) – Heat and aging cause trim to peel or crack.
💨 Exhaust & Emissions
- ✅ Catalytic Converter & O2 Sensor Failures – Can trigger check engine lights and emissions issues.
- ✅ EGR & DPF Clogging (Diesel Models) – Leads to reduced power and efficiency.
- ✅ Exhaust Flex Pipe & Downpipe Cracks – Common on turbo models.
BMWs are fun to drive, but their complexity means they require consistent maintenance to avoid expensive repairs. If you’re dealing with any of these issues — or something not listed here — bring it in and we’ll get you sorted. 🚗💨
